DPI-4000-D-Right

Product Description :

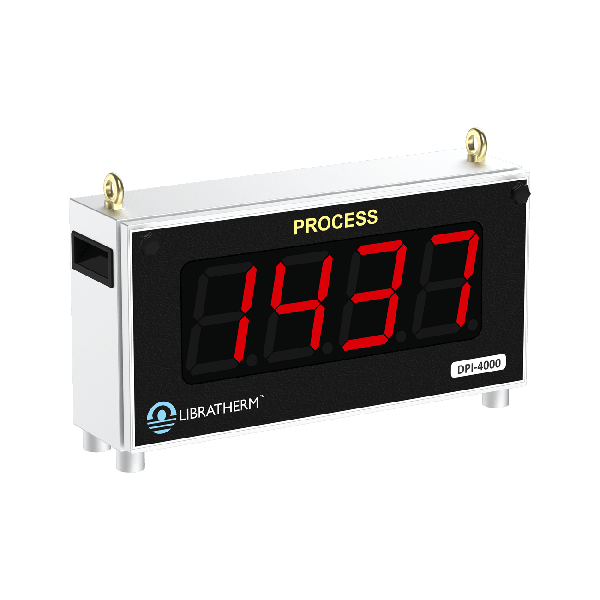

DPI-4000-D – Large Display 4 digit 4” height Digital Process Indicator.

Technical Specifications :

Parametes Description
Design Solid state design using 3 and and 4 digit DPM
Signal Input Standard Thermocouples (J, K type), Pt-100, 0-20mA, 4-20mA,(0-5)VDC, (0-10)VDC – user selectable using DIP switch
Display 4 digit – 4” seven-segment red LED display.
Display Range For Process Input :
i) -1999 to 9999
For Temperature Input :
ii) 0 to 400 °C (J type) / 0 to 1200 °C (K type)
iii) 0.0 to 199.9 °C / -100.0 to 400.0 °C (RTD)
iv) For any other input calibration range to be specified.
Calibration Range User to specify the desired calibration range. (On site calibration adjustment possible using ZERO and SPAN potentiometer).
Resolution 1 count, 0.1 count, 0.01 count or 0.001 count (user to specify Decimal point position – subject to selected input type)
Accuracy i) Better than +/-0.5% to +/- 1% for the temperature input in the specified range.
ii) Absolute for the process input of voltage and current signal.
Aux. Supply 230AC +/- 10%, 50/60 Hz (110VAC or 24AC / 24VDC – optional)
Enclosure Dust free – Metallic powder coated (IP 54)
Size (mm.) 500(W) x 250(H) x 150(D)
Operating conditions Temperature: 60 0C , RH 90% max. (Non-Condensing)
Weight 6.0kg (approx.)
Mounting Wall mounting key holes, ceiling mounted hooks or can be placed on a desk.
Enclosure MS – powder coated with Siemens gray texture colour.
Technical Documents Each display unit will be supplied along with the detail user’s manual, wiring diagram, calibration report.
