Data Loggers (Microcontroller Based)

Microcontroller Based Temperature Scanners 8 CHANNEL

Process Control Instruments

Data Loggers (Microcontroller Based)

Product Specification :

Model wise descriptions :

Model Model Description     (XX = No. of channel ) Size (WxHxD) (mm.)
8.7 DATALOG-804 2 to 8 Channel Temperature/Process Data logger with user selectable input. 96 X 96 X 160
8.8 DATALOG-804-S
2 to 8 Channel Temperature/Process Data logger with user selectable input and RS485
interface
96 X 96 X 160

Description :

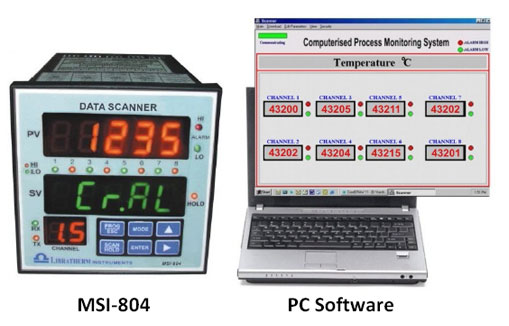

Libratherm offers Microcontroller based Temperature / Process Scanner Model MSI-804 which is designed for continuous, simultaneous and very accurate monitoring of temperature or process values at maximum 8 different locations.

The Model accepts universal input of standard thermocouples or RTD(Pt-100)/3 wire sensors and voltage or current signals. The type of input for each channel is user selectable from the keyboard, i.e. all 8 channels can be selected for different type of input. MSI-804 offers 5 digit display having the range of 0 to 30000 counts or -10000 to +20000 counts. Such wide display range makes it possible to display the temperature or process value with the highest degree of accuracy and resolution. For example, using R type thermocouple the temperature can be displayed with 0.1oC resolution from 0.0 to 1768.0oC. Similarly, any other process value can be precisely displayed with desired resolution within the specified range.

Other hardware features includes, 2 nos. of common high/low relay outputs, 16 nos. of relay drivers as high and low alarm for all 8 channels and 2 nos. of RS485 serial port on Modbus RTU protocol for serial interface to any Master device. The respective front panel LEDs shows the status of all the outputs. Standard features include programmable SCAN rate, channel HOLD and SKIP facility with manual increment of the channel number using front panel membrane keyboard.


Technical Specifications :

No.off channels 2 to 8
Universal Input j, K, R, S, B, C, D, RTD (PT-1000)/ 2 or 3 wire (4-20) mA, (0-1)V,etc (configurable or fixed as specified)
Range 0 to 30000 or -10000 to + 20000 counts UOM-subject to the specified input
Accuracy Better than ± 0.1° c ± 0.1° c (software linearized for temperature)
DIsplay
5 digit each 0.5" 7 segment Red LED to display process & alarm Values, 2 digit 0.3" 7-segent Red for channel no.
Scan Rate 1 to 99 SEC( Programmble through front panel keyboard)
Data Storage 8000 records (512 kb)
Skip/ hold Facility Avialable through key board in configuration mode.
High / Low Alarm Common or individual sattable using key board
Common Relay Out put 20 nos. potential free change over contacts (1 each for high and low output but common for all channels)
Alarm Outputs 8 X 2 open collector outputs to drive external relay cards
LED Indication Maximum 16 LED' s in the front indicating status of each alarm output
Serial Interface RS485 MODBUS RTU protocol master & slave mode.
Supply 90v-260AC /110 VAC± 10%(10VA)50/60Hz or 24VDC@`200mA
Enclosure plastic or Metallic With ABS bezel and polycarbonate front.
SIZE 96x 96 x 160
No of Bank time Panel Terminals Total 37 terminals
For further information on obove product- please contact us
