DPI-8000-D-Right
Product Description :

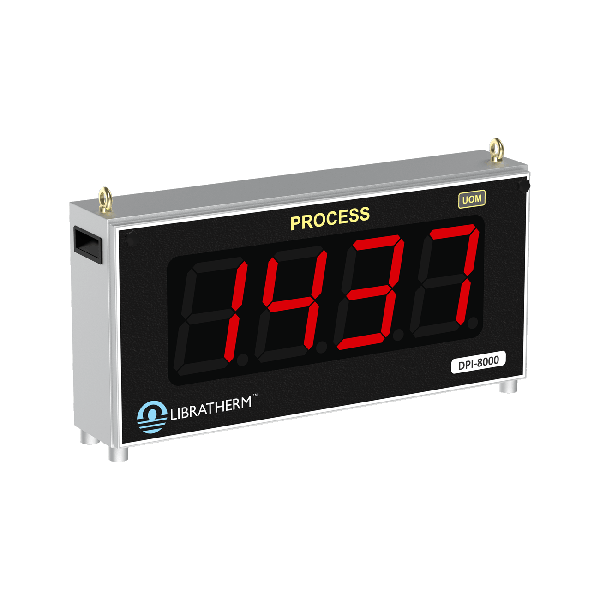

DPI-8000-D – Large Display 4 digit 8” height Digital Process Indicator.
Technical Specifications :
| Parametes | Description |
| Design | Solid state design using 3 and ½ digit and 4 digit DPM. |
| Signal Input | Standard Thermocouples (J, K type), Pt-100, 0-20mA, 4-20 mA, (0-5) VDC, (0-10) VDC – user selectable using DIP switch. |
| Factory Set Input | User may specify at the time of placing order. |
| Display | 4 digit – 8” seven segment red LED display. |
| Display Range | For Process Input: 1) -1999 to 9999 For Temperature Input: 1) 0 to 400 °C (J type) / 0 to 1200 °C (K type) 2) 0.0 to 199.9 °C / -100.0 to 400.0 °C (RTD) 3) For any other input calibration range to be specified |
| Calibration Range | User to specify the desired calibration range. (On-site calibration adjustment possible using ZERO and SPAN potentiometer). |
| Resolution | 1 count, 0.1 count, 0.01 count or 0.001 count (user to specify – subject to selected input type). |
| Accuracy | 1) Better than +/- 0.5% to +/- 1% for the temperature input in the specified range. 2) Absolute to the process input. |
| Distance between 2 digits | Sufficient to identify each digit from long distance. Each digit is easily replaceable. |
| Aux. Power Supply | Dust free – Metallic powder coated (IP 64). |
| Size (mm.) | 760 (W) x 340 (H) x 150 (D) - 8” LED display. |
| Operating conditions | Temperature: 60 °C, RH 90% max. |
| Weight | 10.0 Kg (approx.) |
| Mounting | Wall mounting key holes, Ceiling mounted hooks or can be placed on a shelf. |
| Enclosure | MS – powder coated with Siemens gray texture color. |
| Technical Documents | Each display unit will be supplied along with the detail user’s manual, wiring diagram, calibration report. |
