DTM-22-RTD-TC-RIGHT

Product Description :

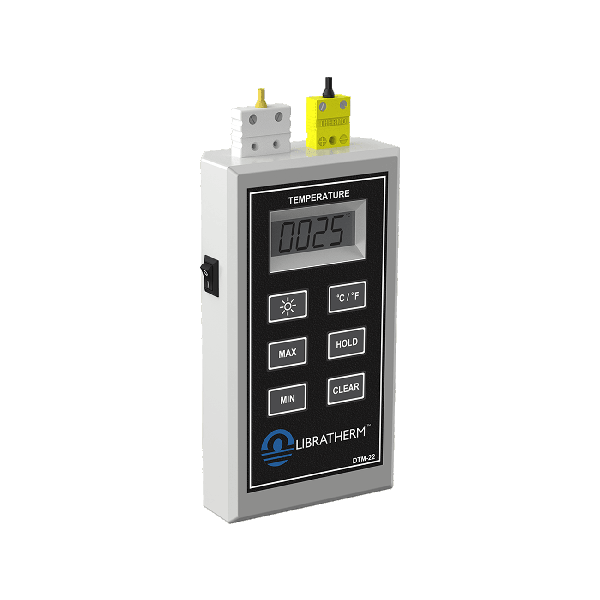

DTM-22-RTD-TC – Thermometer suitable for Pt-100 and Thermocouple probes.

Technical Specifications :

Parametes Description
Sensor Input / Range Refer Input and Range Selection Table.
Accuracy ±0.2 °C/°F for RTD (Pt-100) sensor & ±1 °C /°F for Thermocouple sensor.
Resolution 0.1°C for RTD (Pt-100) and 1°C for T/C sensor.
Display 4 Digit, 0.5" high 7 segments numeric LCD (with Backlit*)
Over Range Indication Provided.
Low Battery Indication Provided.
Soft Touch Keypad For °C / °F / Max / Min / Hold / Clear / Back Lit Functions.
CJC Built-in Automatic for all types of thermocouples.
Supply 9V dry cell / 9V AC-DC adaptor.
Serial Interface (Optional) RS232 port for PC interface with additional adaptor (available as an additional accessory).
Key Sound Miniature beeper – sounds on Keypress.
Operating / Storage Temperature 0-50 °C Max. / 0-70 °C Max. @ 10-85% Rh (Non-Condensing).
Size 150 (H) x 82 (W) x 35 (D) mm.
Weight 200 gms approx.
Enclosure ABS Plastic body with poly-carbonate front and a membrane keyboard.
