Clean Room Monitor and Real Time Data Logger – THP-3003

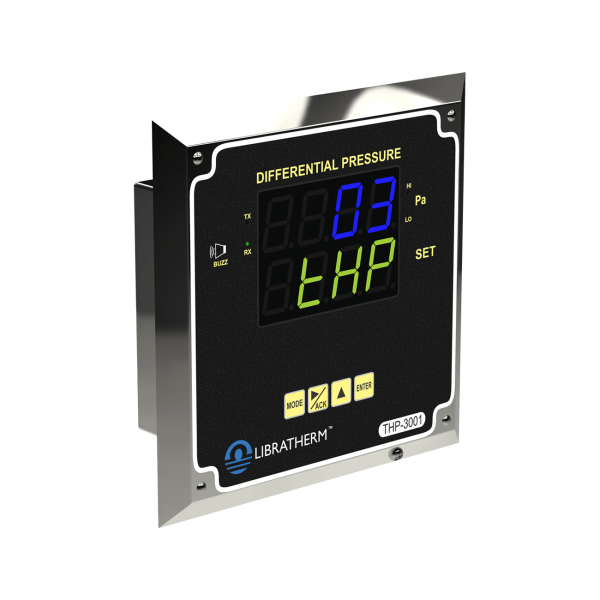

THP-3001-SSC & THP-3001-SSW – –Only DP or T or RH Indicator Transmitter – 1” display with built in real time data storage.
Technical Specifications :
| Parameters | Description |
|---|---|
| Sensors | External / Internal Capacitive / Pt-100 based T + Rh sensor and built in DP sensor. |
| Temperature Range | 0.0 to 60.0oC /32.0 to 140.0oF (any other desired range can be specified). |
| Temperature Accuracy | +/- 0.3 ⁰C/ ⁰F |
| %RH Range | 0.0 to 100.0 %RH |
| RH Accuracy | +/-1.0 %RH @ 25.0 ⁰C or +/-3.0%RH subject to type of sensor used. |
| Diff. Pressure Range | +/-100 mmWC or +/-999 Pascal (UOM can be selected) |
| DP connection using 6 mm self- lockable PU tube connector at the back. | |
| DP Accuracy | +/- 1% of the calibrated range. |
| Display of Parameter | 4 digits LED display each for T, %RH and DP – 1” height red /green/blue |
| Display of Time /Calander | On demand through keyboard selection for Time in HH MM format and for Calendar in DD MM YY format. |
| Power Requirement | 18 to 36 VDC (Typical 24VDC) @ 300mA (+/-10%) or 230VAC (Any one – user to specify) – using separate AC/DC adapter. |
| Output 1 for Temperature | 4-20mA proportional to 0.0 to 60.0 ⁰C |
| Output 2 for % RH | 4-20mA proportional to 0.0 to 100.0 %RH |
| Output 3 for DP | 4-20mA proportional to +/-100mmWC or +/-999 Pascal. |
| High and Low Alarms | High and Low alarm set points for each parameter are user programmable. In case of deviation from the set value, the front panel LED lights and Beeper sounds (with snooze facility). |
| Serial Output | Isolated 2 wire RS-485 MODBUS RTU - with programmable SLAVE ID |
| Ethernet Port | Ethernet port on RJ-45 jack with TCP/IP protocol. |
| Built in Memory and RTC | Real time Data storage capacity of 20,000 records in 256KB of flash memory with built in RTC. |
| Key board | Membrane key board is provided for programming real time, alarm values, MODBUS address and for calibration. |
| SSC - Enclosure (Size) | (200w x 200h x 50d) mm. - Depth of max. 20mm front from Wall surface. |
| SSW - Enclosure (Size) | (200w x 200h x 60d) mm. - Depth of max. 60mm front from Wall surface. |
| Mounting | Concealed flush mounting on the PUF panel or on the wall surface. |
