DTM-21-Right
Product Description :

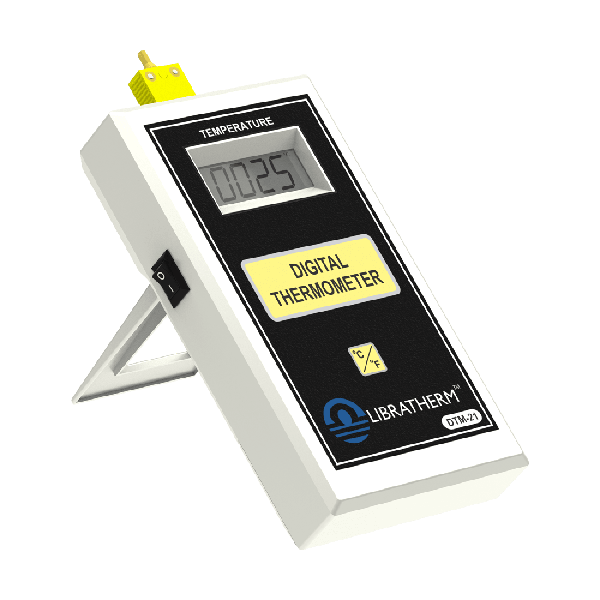

DTM-21 – High Accuracy Industrial Handheld Thermometer – Universal.
DTM-21-RTD – Thermometer suitable for Pt-100 probes.
DTM-21-TC – Thermometer suitable for different types of Thermocouple probes.
Technical Specifications :
| Parametes | Description |
| Sensor Input | K type or RTD (Pt-100) probes. |
| Range | 0 to 1372 °C for K TC. -200.0 to 400.0 for RTD (Pt-100). Refer Ordering Information for a specific requirement. |
| Accuracy | ±0.1 °C/ °F for RTD (Pt-100) sensor & ±1 °C / °F for Thermocouple sensor. |
| Resolution | 0.1°C for RTD (Pt-100) and 1°C for T/C sensor. |
| Display | 4 Digit, 0.5" high 7 segment numeric LCD. |
| Over Range Indication | Provided. |
| Low Battery Indication | Provided. |
| Soft Touch Keypad | For °C / °F selection. |
| CJC | Built-in Automatic for all types of thermocouples. |
| Supply | Single 9 volts dry cell / 9V AC-DC adaptor. |
| Operating / Storage Condition | 0-50 °C Max / 0-70 °C Max @ 10-85% Rh (Non-Condensing). |
| Size | 150 (H) x 82 (W) x 35 (D) mm. |
| Weight | 200 gms (approx). |
| Enclosure | ABS Plastic body, polycarbonate front and with table stand. |
